Process Pipe

Process Piping Code Compliance

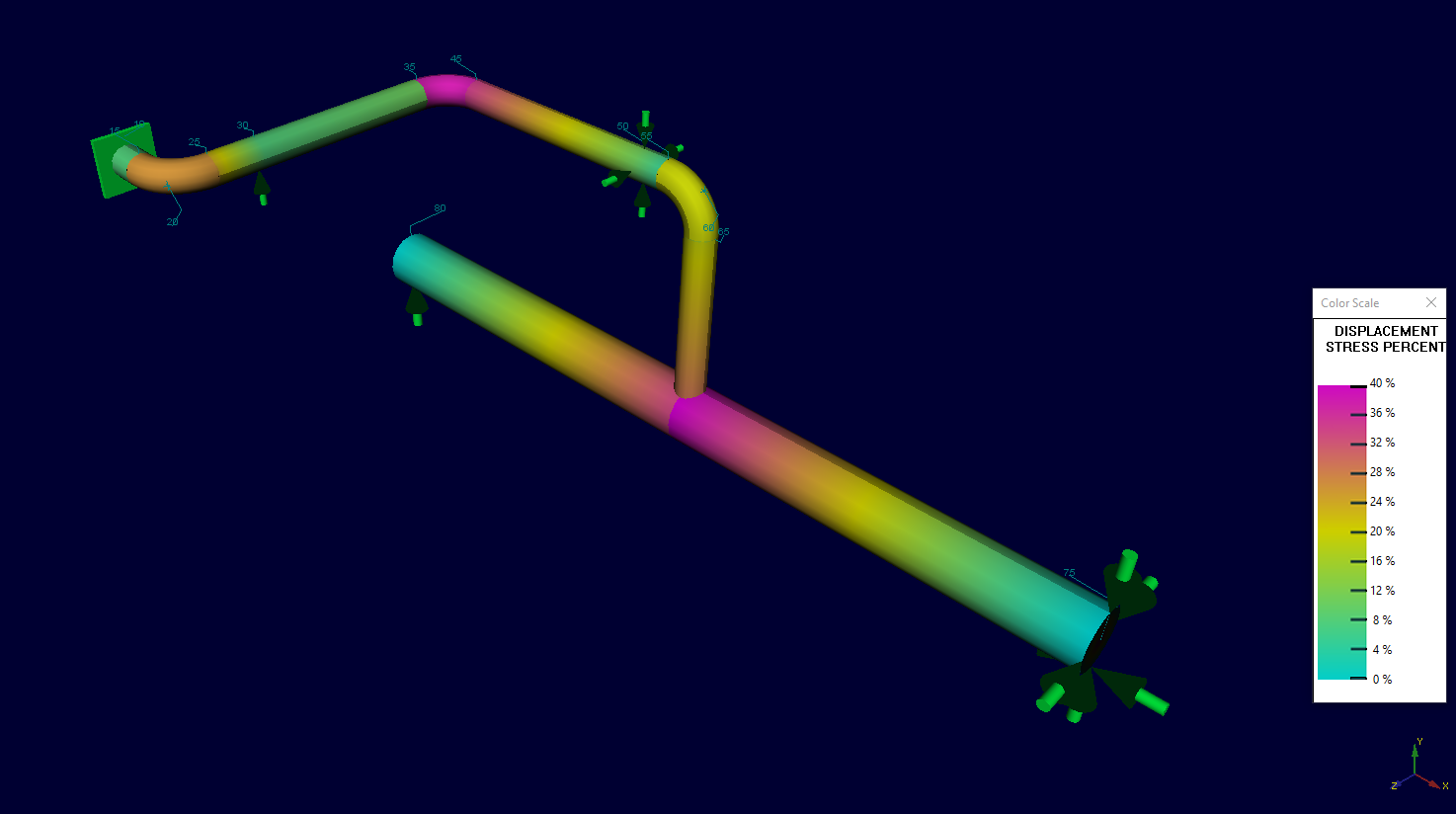

  • Stress analysis to ensure pipe is designed to withhold stresses from sustained loading, displacement loading, and occasional loading.

  • Seismic, wind, snow, and transportation are some of the standard available occasional load cases.

  • Vibration Modal Analysis (AIV / FIV), Water Hammer, Slug Flow, and Seismic Analysis are some of the available dynamic analyses.

  • Piping Flexibility Analysis available in accordance with ASME B31.3. ASME B31.12 and B31.1 options are within our area of expertise.

3D Models & Fabrication Drawings

  • 3D models are provided with all fabrication drawings and conceptual designs.

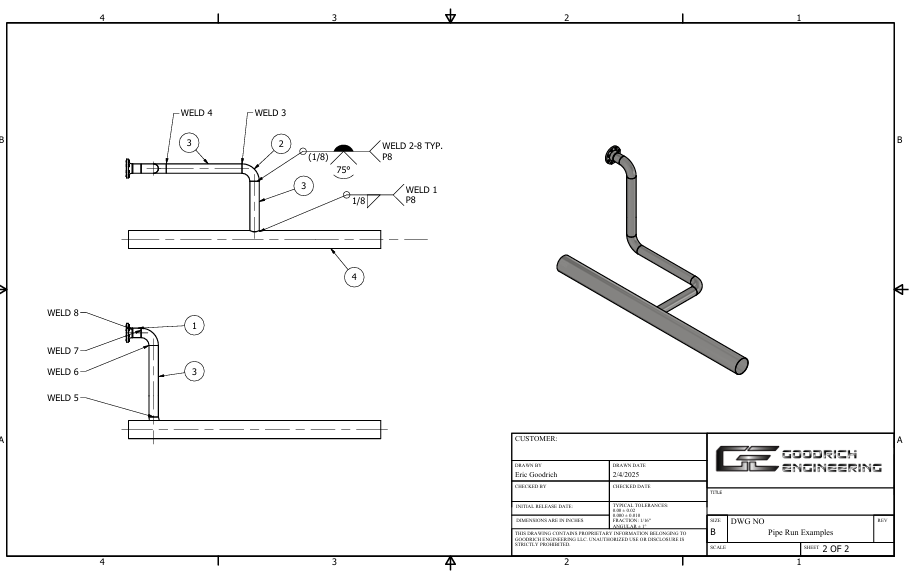

  • Fabrication Drawings Include:

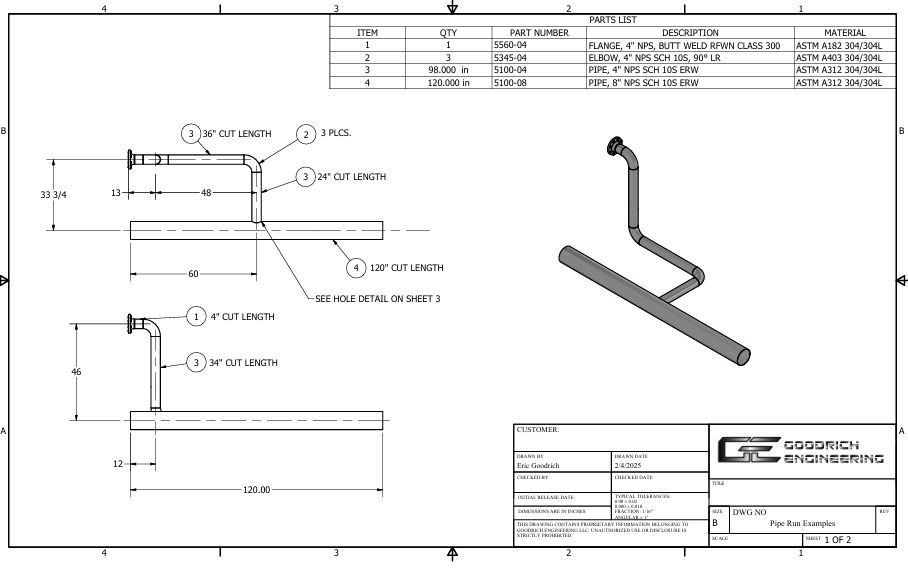

    • Comprehensive Bills of Material with proper parent child relationships.

      • All components that are not off the shelf will be detailed for fabrication in a separate drawing.

    • Dimension details, weld call-outs, and weld maps to assist with weld traceability requirements.

    • Drawing package to be submitted to and signed by customer.

    • Continued support of the design through the fabrication process.

    • Customization of the customer part numbers available.
