Pressure Vessels

Pressure Vessel (PV) Code Compliance

  • ASME BPVC Section VIII Div I & II code calculations.

  • Code Calculation outputs include but are not limited to:

    • Pressure Rating, Nozzle Sch., Radiography Req., Min. Thickness, etc.

    • Cylinder, Head, Nozzle, Lifting and other appurtenance summaries.

  • Materials of construction available: Nickel Alloy, Carbon Steel, Stainless Steel, and Aluminum.

  • PV Compliance includes coordination with the Authorized Inspector at U-Stamp facilities as needed.

  • Goodrich Engineering offers fabrication services for pressure vessels through a trusted vendor.

    • Goodrich Engineering will work with the 3rd party Authorized Inspector (code requirement).

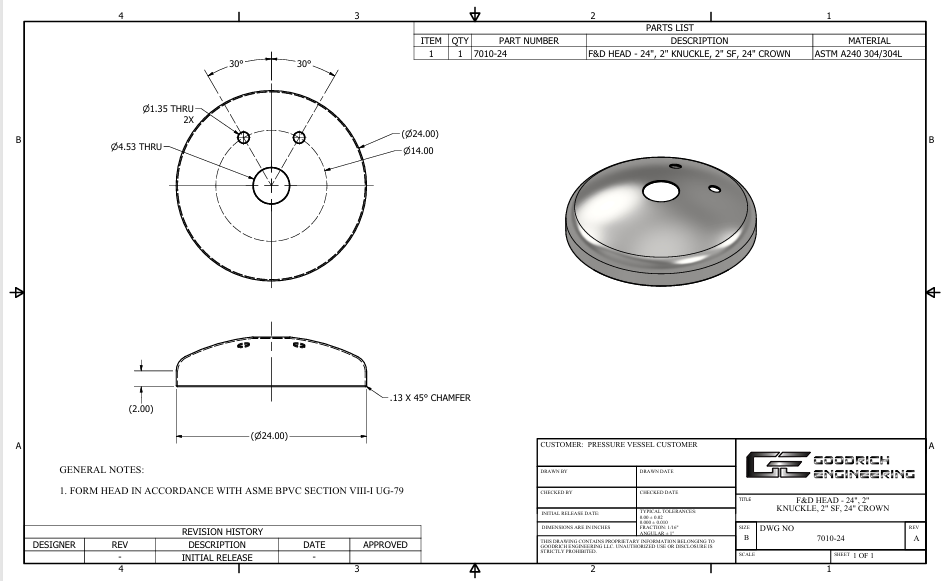

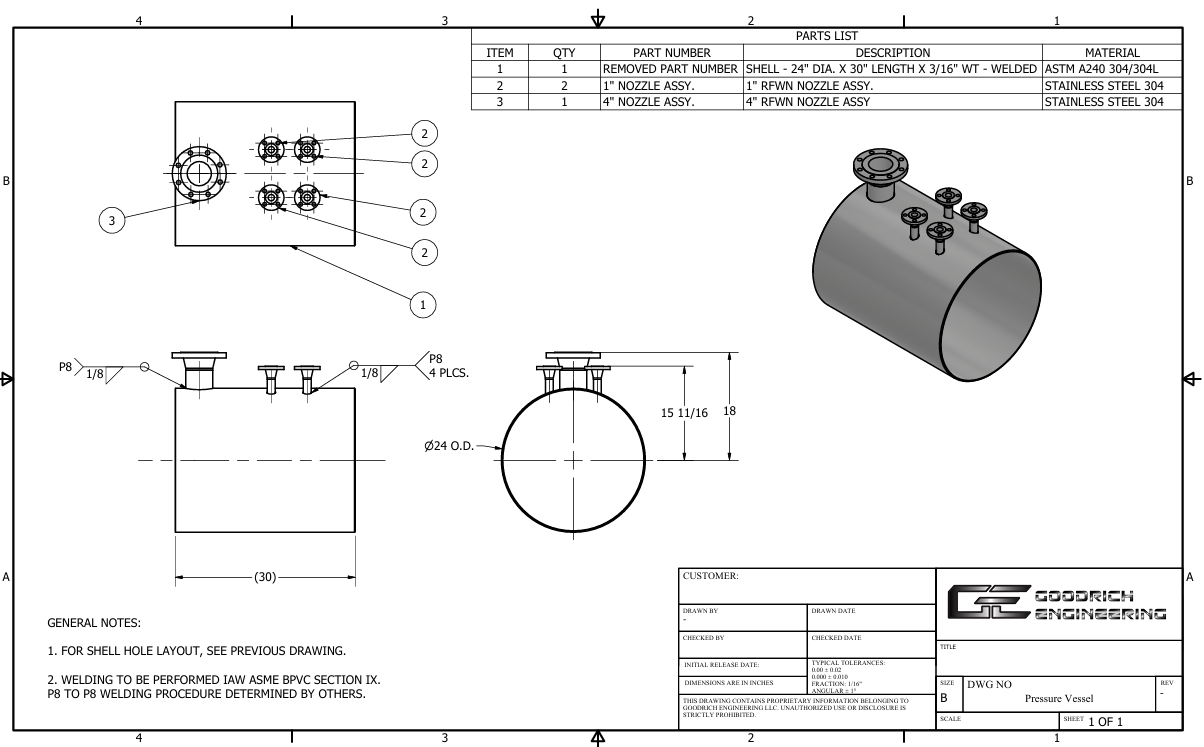

Pressure Vessel Fabrication Drawings

  • 3D models & drawings are provided in addition to the code specific calculations.

  • Fabrication drawings include:

    • Comprehensive Bill of Materials with proper parent-child relationships..

      • Custom components are detailed in an individual child drawing.

    • Fabrication drawings will include weld maps to assist with weld traceability as required in the code.

    • Continued support of the design through the fabrication process (including 3rd Party Auth. Inspector.
